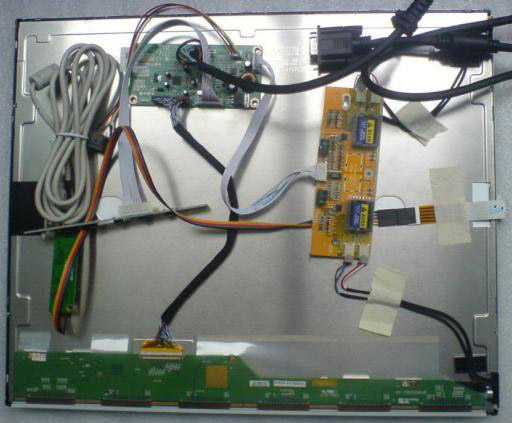

17'' open frame monitor
    1. Product Name:17'' open frame monitor

    2. Model:HGL170S-2
    3. Specifications:
    4. Price:0.00
    5. Special Offer:0.00
    6. Hits:3624
    7. times:2011-11-30 01:27:38
    8. Introduction:HGL170S-2



Panel Display size 17''Normal 4:3
Brightness 250cd/m2
DCR 5000:1 (Typical)
Pixel pitch 0.264mm
Response time 5 ms
Viewing angel H/V  160°/ 150°
Display color 16.2M Colors
Video H - frequency. 30KHz – 80KHz
V - frequency. 50Hz – 75Hz
Standard resolution 1280x 1024@60Hz
Functions Optional VGA, speaker
Power Consumption AC100-240 V 50/60Hz 1.1A ≤ 35W
Operating Temperature 5-35?
Physical Loading qty 1040 PCS/ 20”GP, 2160PCS/ 40” GP, 2592PCS/40HQ
Packing 436x138x431mm
Net weight 3.14kgs
Gross weight 4.28kgs
Controls Front control Menu, Down, Up, Auto Power/LED
OSD English, German, French, Italian, Spanish, Chinese
